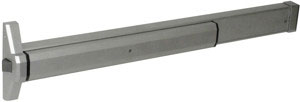

Rim Exit Device


Model Number: DC-PB3

ON SALE

Call us at 915-346-4735

OR

Request a Quote!

Designed to allow exit from within an area normally locked by an electric lock or electromagnetic lock, and/or to disarm or trigger an alarm when the door is opened.




For 36" Doors

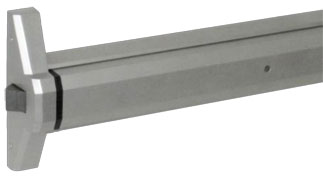

Rim Type Exit Enlargement Picture

How It works.

When the door push bar is mounted on the inside of a door to block entry to a protected premises, it securely locks the door from the outside while allowing users from within the protected premises to exit. The stainless steel enclosure protects the exit device from abuse, yet easily unlocks the door from the inside by users who require exit.
Possible Applications.

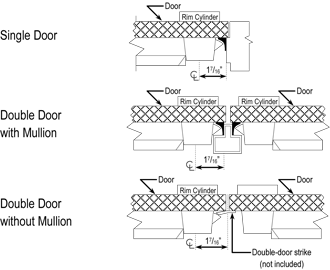

Pushbar Applications Diagram
Dimensions.

Dimmensions Diagram
  • Allows exit from inside while locked from outside. Reversible, non-handed design.
  • For metal or wood doors up to 1-3/4" (44mm) thick.
  • Stainless-steel 3/4" (19mm) throw latch bolt.
  • Allen-type 1/4-turn dogging lock -- Allows the exit bar to be unlocked for extended periods of time.
  • Includes all needed hardware for a typical installation.
  • Works with rim cylinder locks (not included).
  • Fits doors from 36" (97cm) to 48" (122cm) wide.
  • Stainless steel spring.
