Home > Blue Light Emergency Phones > Small Emergency Call Boxes

Latest in Emergency Communication


An Emergency Call Box is a device typically placed in a high traffic area as an additional security measure for pedestrians. By having these stand alone call boxes, people are constantly reassured that assistence is just a push of a button away. They can also be situated inside buildings to assist employees and guests. They are easily visible from long distances, and unlike cell phones give the dispatch center your exact location for a faster response. Available in different colors (charges may apply).

Emergency Call Boxes


Model Number: DC-BL3

Questions?

Call us at 915-346-4735

OR

Request a Quote!

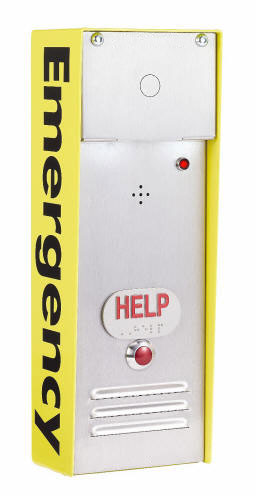

These smaller ADA compliant emergency call boxes (12" x 4.2" x 3.5") are hands-free and feature a call progesss lamp when in active state. At the press of a button, the device automatically dials a primary telephone number. If the number is busy or does not answer, the emergency call box will hang up and dial the next number and so on, up to 10 numbers. A call progress lamp is provided on the front of the unit for the benefit of the hearing impaired. When the CALL button is pressed, the lamp flashes to indicate a call being placed. When the call is answered, and the unit recognizes that someone is speaking to the unit, the lamp glows continuously. Also features telephone power backup using phone line power, one 5 Amp Form C Relay, 1x cctv camera relay ( camera optional), 12 VAC, and features Electronic Site ID and Voice Location ID, for immediate site location.








  • Design- Hands-free speaker telephone. Single button operation.
  • Capacity - Up to 10 numbers, each up to 16 digits in length.
  • Operation Modes - Two, Standard Emergency and Emergency Ringdown.
  • Response Assurance - Unit cannot be disabled by pressing call button after Emergency Mode operation sequence is started. Only remote attendant can terminate the call.
  • Site ID - Programmable 4 digit code.
  • Programming - Remote via touch-tone telephone.
  • Power - IIOV/12VAC, 40VA, Class 2, transformer included.
  • Output Ratings Power Relay: 5 AMPS @ 12VDC or 1 AMP @ l1OVAC Output
  • Duration - Duration of telephone call.
  • Inputs - Push-to-exit button
  • Telephone Line - Standard touch-tone or rotary. Dedicated or extension line.
  • Mounting - Surface with flush or pedestal mount options.
  • Construction -
    • Non-corroding #316 Stainless Steel
    • Weather resistant enclosure with back plate and tamper resistant security screws.
    • Double baffled, underwater rated, fiber material.
    • Speaker - High quality carbon microphone in an acoustical chamber.
  • Operating Temperature - -5º F to + 120º F
