Auto-Dial Phones

This handset telephone entry system is well suited for outdoor application in areas of high noise or where privacy of conversation is needed.

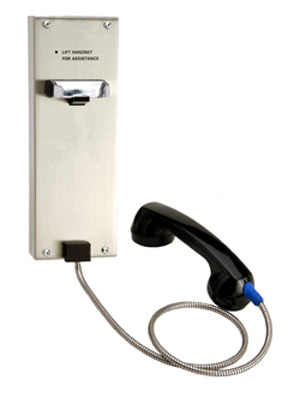

Handset Automated Phone Entry

Model Number: DC-TEA5


When the handset is lifted, the device calls a programmed telephone number. If the called number is busy or does not answer, it will hang up and dial the next number and so on up to 10 numbers. If all the back up numbers are busy or do not answer the handset will start at the first number again.

When the call is answered the resident has the choice to grant entry with their keypad or deny entry by hanging up. If the second relay is connected, the resident can also control that device at this time with their keypad.

The handset phone can be programmed with a unique site ID. The device will transmit the code as tones when the called party presses a key on their telephone. This allows identification even if the caller is unable to speak or the handset is left off the hook. A Decoder can be employed to automatically interpret the Site ID and display information regarding that site.


  • Access control for areas of high security where privacy is needed.
  • High noise areas benefit from the handset.
  • Banks or places where private information is exchanged.



  • Automatically dials a programmed number up to 16-digits. The HS-2 can be programmed to autodial up to 10 numbers for added security.
  • Operates on 12V AC/DC
  • Two output relays for control of one entrance and one additional feature of choice (camera, extra door, etc)
  • Alarm shunt relay aids alarm management.
  • Remotely programmable from any touchtone phone.
  • Programmable site ID
  • Public telephone style handset with armored cable.
  • Non-corroding #316 Stainless Steel weather resistant enclosure with tamper resistant security screws.
  • Slim design for easy mounting.
  • Optional Lighted hood provides increased protection in exposed areas

  • Design - Handset telephone
  • Capacity - Up to 10 numbers, each up to 16 digits in length.
  • Site ID - Programmable site ID
  • Programming - Remote via touch tone telephone.
  • Power - 110V/12VAC, 40A, Class 2 transformer included.
  • Output Rating: Power Relays: 5 amps @ 12 VDC or 1 amp @110VAC. Alarm Shunt Relay 250ma @ 12VAC.
  • Output Duration - Programmable, momentary up to 45 seconds.
  • Inputs - Push-to-exit button or postal lock box.
  • Telephone Line - Standard touch tone or rotary. Compatible with most PBX analog ports.
  • Mounting - Surface with flush or pedestal mounts available.
  • Construction:
    • Non-corroding #316 Stainless Steel weather resistant wraparound enclosure with back box and tamper resistant security screws.
    • Public Telephone grade handset with armored cable.
  • Operating Temperature: -5ºF to +120º
