Automated External Defibrillator Towers


This automated external defibrillator system is an excellent choice for protecting and securing walkways, parking lots, college and commercial campus areas, hospitals, open areas and anywhere an external defibrilator is required. Wherever situated, these telephone systems combined with an effective defibrillator ia an affordable way of putting the publics mind at ease.

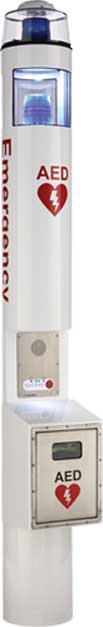

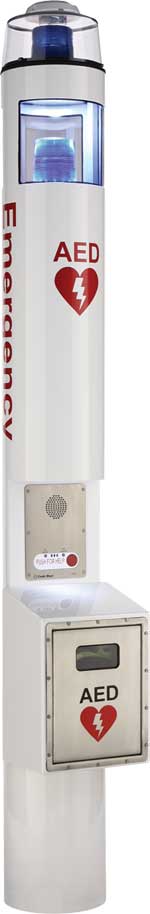

Free-Standing Emergency Automated External Defibrillator


Model Number: DC301

The Unit combines the original emergency communication unit with an integrated Automated External Defibrillator (AED). The DFB 1-s offers all the benefits of the standard mass notification system plus ready access to an Automated External Defifibulator contained within its climate-conditioned compartment. Access to the external defibulator is easily controlled through a signal to the DFB communication device to release the door hatch.

The user friendly LED lit faceplate and the integral area light ensures rapid location in an open environment. The high outputstrobe is easily identifiable by security when activated. The exclusive InterAct™ speakerphone is designed for maximum reliability and leads the market in system programming flexibility.

Controlled AED access and controlled housing temperature allow the end user to place these devices in outdoor areas where timely response to sudden cardiac arrest is critical.





External Defibrillator Tower Features

• IA4100™ speakerphone
• 2 Auxiliary inputs/ 3 Auxilliary outputs (3 NO/3NC)
• High output combo LED beacon/ strobe
• 24v LED low consumption area light
• Analog telephone connection
• LED lit stainless steel faceplate
• Phone line surge suppressor
• Vandal resistant hardware






• 120v AC power
• ADA compliant
• Voice Identifier
• UV resistant lenses
• Ultra-weather resistant finish
• Internal foundation anchor kit
• Phone activated AED access door
• Insulated and thermostat
controlled AED housing






OPTIONAL FEATURES

• Two button speakerphone with keypad
• Two button speakerphone
• 70w HID area light
• Remote key FOB
• Powered vent
• Overhead Camera Mount
• IP wireless communication option
• GSM cellular communication option
• Custom colors & graphics
• Step-down power transformer
• Public Address System speaker array
• NOTE: Automated External Defibrillator (AED) sold separately. Contact your authorized local medical equipment or representative for details.





MOUNTING HARDWARE

• Mounting hardware and template for each unit is shipped in advance of unit for foundation work.






FINISH COLOR OPTIONS



• Safety Blue
• Safety Red
• Safety Yellow
• Gloss White
• Gloss Black
• Midnight Blue
• Medium Bronze
• Dark Bronze
• Cardinal Red
• British Racing Green






OPTIONAL COLORS

• Custom colors and graphics from Pantone color chart, RAL number or sample are available as a special order.

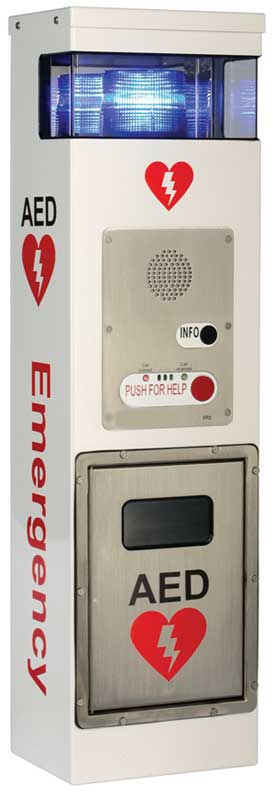

Wall-Mounted Emergency Voice Unit w/ External Defibrillator


Model Number: DC302

The CS-ed 2 combines the CB 2-e wall mount style with an integrated housing to accept an Automated External Defibrillator (AED). TheCS-ed 2 offers all the benefits of the standard unit plus ready access to an AED within its stainless steel, climate controlled compartment. Access to the AED is easily controlled through a signal to our phone to release the door hatch.
Available in heavy steel with a durable weather resistant finish, this defibulator is designed for both exterior and interior applications. The combination LED beacon/strobe and the InterAct communication system provide a rugged and reliable solution for the security conscious customer.
Controlled AED access and controlled AED housing temperature allow the end user to place these wall mount defibulators in outdoor areas where timely response to sudden cardiac arrest is critical.






Features

• IA4100™ speakerphone
• Supported by ToolVox® IP Communication Manager and Blue Alert™
• 2 Auxiliary inputs/ 3 Auxilliary outputs (3 NO/3NC)
• High output combo LED beacon/ strobe
• 24v LED low consumption area light
• Analog telephone connection
• LED lit stainless steel faceplate
• Phone line surge suppressor








• Vandal resistant hardware
• 120v AC power
• ADA compliant
• Voice Identifier
• Wall mounting kit
• UV resistant lenses
• Ultra-weather resistant finish
• Phone activated AED access door
• Insulated and thermostat controlled AED housing
• 12 gauge, 4B brushed stainless steel housing









OPTIONAL FEATURES

• Two button speakerphone with keypad
• Two button speakerphone
• Painted finish
• Custom colors & graphics
• Step-down power transformer
• Remote key FOB
• NOTE: Automated External Defibrillator (AED) sold separately. Contact your authorized local medical equipment or representative for details.





MOUNTING HARDWARE

• Mounting hardware and template for each unit is shipped in advance of unit for foundation work








FINISH COLOR OPTIONS



• Safety Blue
• Safety Red
• Safety Yellow
• Gloss White
• Gloss Black
• Midnight Blue
• Medium Bronze
• Dark Bronze
• Cardinal Red
• British Racing Green





OPTIONAL COLORS

• Custom colors and graphics from Pantone color chart, RAL number or sample are available as a special order.
