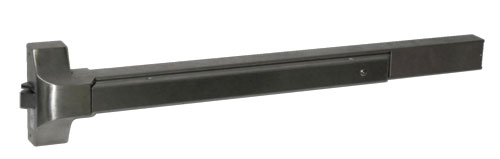

Door Crash Bar

Model Number: DC-PB5

ON SALE

Call us at 915-346-4735

Designed to allow exit from within an area normally locked by an electric lock or electromagnetic lock, and/or to disarm or trigger an alarm when the door is opened.

For 36" - 48" Doors

How It works.

When the door push bar is mounted on the inside of a door to block entry to a protected premises, it securely locks the door from the outside while allowing users from within the protected premises to exit. The stainless steel enclosure protects the exit device from abuse, yet easily unlocks the door from the inside by users who require exit.

Possible Applications.

Dimensions.

Dimmensions Diagram

Features
Specifications

Allows exit from inside while locked from outside.
Reversible, non-handed design.
For metal or wood doors up to 1-3/4" (44mm) thick.
Stainless-steel 3/4" (19mm) throw latch bolt.
Allen-type 1/4-turn dogging lock -- Allows the exit bar to be unlocked for extended periods of time.
Includes all needed hardware for a typical installation.
Works with standard external door handle/lock devices such as the SD-962HL-4A (not included).
Fits doors from 36" (97cm) to 48" (122cm) wide.
Stainless steel spring.
Heavy-duty, ANSI Grade 1 steel construction.

Construction: ANSI Grade 1 steel
Door type: Up to 1-3/4" (44mm) thick, wood or metal
Hand type: Non-handed
Latch bolt: Stainless steel, 3/4" (19mm) throw
Dead Latch: Stainless-steel 5/8" (16mm) stop and shim for 1/2" (12.5mm) stop
Strike: 5/8" (16mm) Stop plus shim for 1/2" (12.5mm) stop
Spring: Stainless steel
Chassis: Stainless Steel
Cover: Stainless Steel
Rail assembly: Stainless Steel
End cap: Stainless Steel
Dogging: Allen-type standard
Dimensions: 32-1/8"x6"x2-9/16" (787x154x65 mm)
Weight: 6-lb, 12-oz (3kg)
