Auto-Dial Phones
With the proximity reader mounted to the face, authorized people are allowed access while visitors are able to gain entry by pressing the button and speaking to the auto attendant whom in turn grants or denies access.

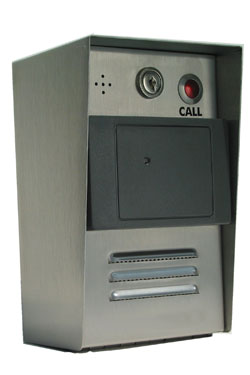

RFID Proxy Automated Phone Entry
Model Number: DC-TEA6
Operation
When the button is pushed, the RFID Proxy Unit calls a programmed telephone number. If the called number is busy or does not answer, the phone will hang up and dial the next number and so on up to 10 numbers. If all the back up numbers are busy or do not answer, the device will start again at the first number.
When the call is answered, the resident has the choice to grant entry with their keypad or deny entry by hanging up. If the second relay is connected the resident can also control that device at this time with their keypad.
The RFID proxy unit can be programmed with a unique site ID. It will transmit the code as tones when the called party presses a key on their telephone. This allows identification even if the caller is unable to speak. A Decoder can be employed to automatically interpret the Site ID and display information regarding that site.
Applications
- Allows entrance for anyone whom does not normally gain entrance or does not have a key.
- Allows contact for offices after hours.
- Use to call security after hours for employee escort
Add Remotes to this unit for easy entry! This allows authorized people to open the relay/door strike/gate at their own convenience at a further distance than the proximity unit.
- Automatically dials a programmed number up to 16-digits. The device can be programmed to autodial up to 10 numbers for added security.
- Operates on 12V AC/DC
- Two output relays for control of one entrance and one additional feature of choice (camera, extra door, etc)
- Alarm shunt relay aids alarm management.
- Remotely programmable from any touchtone phone.
- Programmable site ID.
- Non-corroding #316 Stainless Steel weather resistant enclosure with tamper resistant security screws.
- Slim design for easy mounting.
- Optional Lighted hood provides increased protection in exposed areas.
- Proximity reader mounted to the face
