Auto-Dial Phones
An automated telephone entry unit that strictly autodials. When the button is pushed, the unit begins dialing. It continues dialing programmed numbers until it is answered. The person who answers the call then takes control of the relays. Those relays are then used to remotely control entrances, lights, cameras, etc.

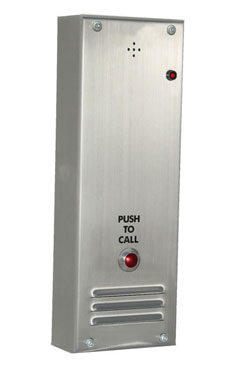

Standard Automated Phone Entry
Model Number: DC-TEA1
Operation
When the button is pushed, the device calls a programmed telephone number. If the called number is busy or does not answer, it will hang up and dial the next number and so on up to 10 numbers. If all the back up numbers are busy or do not answer, the phone will start at the first number.
When the call is answered, the resident has the choice to grant entry with their keypad or deny entry by hanging up. If the second relay is connected the resident can also control that device at this time with their keypad.
The Phone entry system can be programmed with a unique site ID. It will transmit the code as tones when the called party presses a key on their telephone. This allows identification even if the caller is unable to speak. A Decoder can be employed to automatically interpret the Site ID and display information regarding that site.
Applications
- Allows entrance for anyone whom does not normally gain entrance or does not have a key.
- Allows contact for offices after hours.
- Use to call security after hours for employee escort.
Add RF Remotes to this unit for easy entry! This allows authorized people to open the relay/door strike/gate at their convenience.
- Automatically dials a programmed number up to 16-digits. It can be programmed to autodial up to 10 numbers for added security.
- Operates on 12V AC/DC
- Two output relays for control of one entrance and one additional feature of choice (camera, extra door, etc)
- Alarm shunt relay aids alarm management.
- Remotely programmable from any touchtone phone.
- Programmable site ID.
- Non-corroding #316 Stainless Steel weather resistant enclosure with tamper resistant security screws.
- Slim design for easy mounting.
- Optional Lighted hood provides increased protection in exposed areas
