Community Telephone Entry Systems

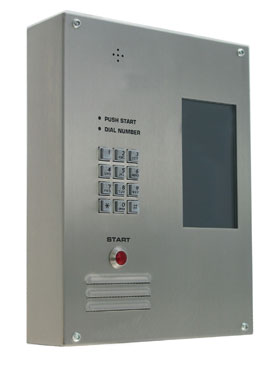

This telephone entry system has a capacity of up to 3000 telephone numbers, 3000 entry codes, and 3000 device codes. It is constructed for rugged outdoor use, yet remains pleasant in appearance. Its long-lasting brush-finish stainless steel housing complements its compact design lines.

Gate Phone Entry

Model Number: DC-TEG3


Call us at 915-346-4735


Request a Quote!


The device uses an ordinary telephone line to provide positive access control for up to 400 residences. Visitors view the LCD directory for the directory code for the resident they wish to visit. They then press the 'Start' button and enter that code. The device then silently speed dials the resident's full telephone number. The resident is alerted to the visit in the same manner as receiving any other telephone call.

After the resident answers the entrance call, visitor access may be granted or denied. The resident presses '0' on his keypad to activate the phone entry system and grant entry. Otherwise, pressing '7' will hang-up and deny visitor entry.

Residents may gain entry at the apartment/door entrance by using their direct entry code, proximity card or RF transmitter.


  • Provides resident controlled guest access for apartments, condos and office buildings.

Add RF Remotes to this unit for easy entry! This allows authorized people to open the relay/door strike/gate at their convenience.

Remote Control for Telephone entry system.



  • Available in 24, 50, 125, 250, 500, 750, 1000, 2000 or 3000 resident capacities.
  • Operates on 12v AC or DC.
  • Capacity includes a telephone number, directory code, name, and direct entry code for each resident.
  • Built-in 8 line, 20 character, 1/2 ”font directory" for resident names and resident codes.
  • Resident telephone numbers may be up to 12 digits.
  • Programmable Site ID.
  • Non-corroding, # 316 Stainless Steel, weather resistant, enclosure with 'tamper resistant' security screws.
  • High clarity carbon microphone in an acoustical chamber for enhanced sound pickup.
  • Double-baffled speaker for communications.
  • Two output relays allow control of more than one entrance.
  • Alarm shunt relay aids alarm management.
  • Create automatic unlock schedules via built-in 7- Day clock.
  • Postal Lock ready.
  • Master / Slave networking for multiple entry devices.
  • Modem Standard and Optional Integrated Camera.
  • Optional support of Wiegand 26 protocol card readers and RF receivers.

  • Design - Hands-free speaker telephone with internal auto dial capability and remote control of relays.
  • Directory - Built-in, 15 or 29 line mode, backlit LCD directory. Normal or Inverse display available. 3w x 5.25”h
  • Capacity - 24, 50, 125, 250, 500, 750, 1000, 2000 or 3000, residents. Capacity includes 1 to 4-digit directory code, 4 digit direct entry code, and up to 12 digit telephone number for each resident.
  • Site ID - Programmable 4 digit code.
  • System Security- Program access code and tamper code.
  • Dial Mode - Allows active keypad after dial out.
  • Call Length - Unrestricted, or limited from 1 to 4 minutes.
  • Programming - Directly on keypad, or remotely via PC.
  • Power - lI0V/12VAC, 40VA, Class 2, transformer included.
  • Output Ratings :
    • Power Relay: 5 AMPS @ 12VDC or 1 AMP @ ll0 VAC Alarm Shunt Relay: 250ma @ 12VAC Output Duration. Programmable; momentary to 45 seconds, or latched.
  • Inputs - Keypad direct entry, or postal lock / push to-exit button.
  • Modem - Available on all models.
  • Telephone Line - Standard touch-tone or rotary. Dedicated or extension line.
  • Postal Lock - Allows keyed access to postman.
  • 7-Day Clock - Allows the creation of automatic unlock schedules.
  • Printer Option - Allows connection to serial printer. Logs events as they occur. Requires 7-Day Clock Option.
  • Mounting - Surface.
  • Construction:
    • Non-corroding #316 Stainless Steel enclosure with tamper resistant' security screws.
    • Double baffled, underwater rated, fiber material speaker.
    • High quality carbon microphone in an acoustical chamber.
  • Operating Temperature: -5° F to + 120°
